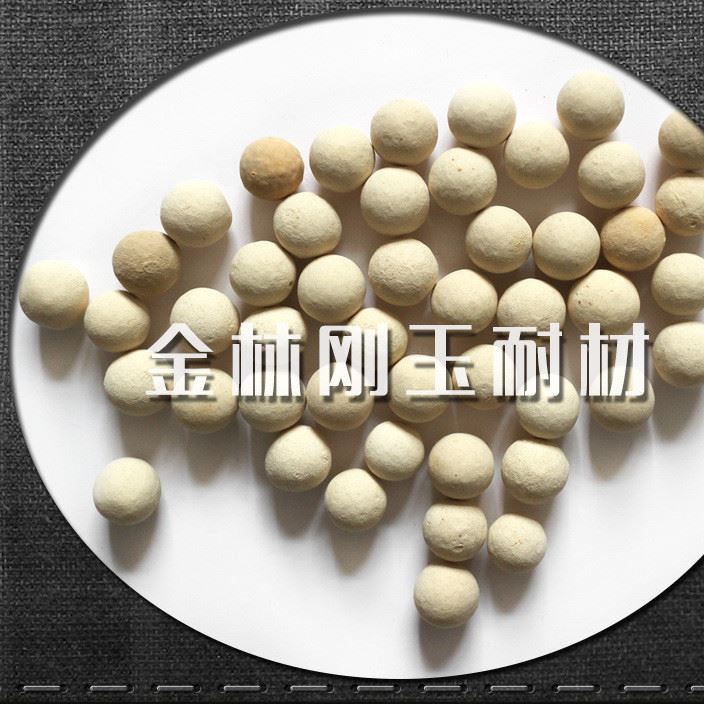

蓄熱球簡介

    蓄熱球外形呈球狀，眾多小球?qū)饬鞣指畛珊苄×鞴桑瑲饬髟谛顭狍w中流過時形成強烈的紊流，有效的沖破了蓄熱體表面的附面層，又因球徑很小，傳導半徑小、熱阻小、密度高、導熱性好，故可實現蓄熱式燒嘴頻繁且快速換向要求。規格：3-5 5-8 8-10 15-16  16-18  18-20  20-22  22-25  25-30mm

    石嘴山市金林剛玉耐火材料有限公司主營的蓄熱球，具有重?zé)€收縮率低、高溫荷重軟化溫度高、耐腐蝕、強度高、蓄放熱量大、熱震穩定性好、導熱性能好、熱膨脹系數小等顯著特點，是優良的耐火材料。通過對煤氣(高爐、轉爐)和空氣雙預熱(油類、高熱值煤氣等則采取助燃空氣單蓄熱方式)，可使蓄熱式加熱爐達到排煙量減少20-50，排煙溫度降至小于150度，產量提高 15-20，鋼坯加熱時間縮短50，氧化燒損降低30-50的環保節能效果。

蓄熱球理化指標

蓄熱球特性

    1、比表面積可達到240m2/m3。

    2、眾多小球?qū)饬鞣指畛珊苄×鞴桑瑲饬髟谛顭狍w中流過時，形成強烈的紊流，有效的沖破了蓄熱體表面的附面層，又因球徑小，傳導半徑小、熱阻小、密度高、導熱性好，故可實現蓄熱式燒嘴頻繁且快速換向要求。

    3、蓄熱體可利用2030次/h的換向，高溫?zé)煔饬鹘?jīng)蓄熱體床層內，便可將煙氣降至130左右排放。

    4、高溫煤氣和空氣流經蓄熱體在相同路徑內即可預熱到僅比煙氣溫度低100左右，溫度效率高達90以上。

    5、因蓄熱體體積十分小巧，加之小球床的流通能力強，即使積灰后阻力增加也不影響熱換指標。

    6、蓄熱小球具有抗氧化、抗渣性強的特點。

    7、陶瓷小球的更換、清洗非常方便，并可重復使用。

蓄熱球用途

    金林蓄熱球適用于氣體及非氣體燃料工業爐的蓄熱球燃燒系統選用，特別適用于鋼鐵行業蓄熱式加熱爐、蓄熱式鋼包烘烤器、空分行業空氣分離設備蓄熱器、有色金屬行業蓄熱式熔煉爐，也可用在大型鍛造廠蓄熱式臺車爐、蓄熱式電鍋爐、蓄熱式焚化爐等行業做蓄熱載體。

    蓄熱球通過對煤氣（高爐、轉爐）和空氣雙預熱（油類、高熱值煤氣等則采取助燃空氣單蓄熱方式），可使蓄熱式加熱爐達到排煙量減少20-50，排煙溫度降至小于150度，產量提高 15-20，鋼坯加熱時間縮短50，氧化燒損降低30-50的環保節能效果。

聯系方式

     石嘴山市金林剛玉耐火材料有限公司

      銷售經理：李晴

      扣扣郵箱：2105787223@qq.com

      公司主頁：*

      地址：寧夏回族自治區石嘴山市平羅縣崇崗煤炭市場

英文翻譯

Introduction of regenerative ball

Regenerative ball spherical shape, so many balls will be split into small airflow flows, flow in regenerator have been out of date the formation of strong turbulence, effective broke through the accumulation of heat on the surface of the body surface boundary layer, and because the ball diameter is very small, small transmission radius, small heat resistance, high density, good thermal conductivity, which can realize regenerative burner frequent and rapid directional control requirements. Specification: 15 to 16 16 to 18 18-20 20-22 of 22-25 25 to 30 mm

Shizuishan Jin Lin corundum refractories co., LTD., production of regenerative ball, has the linear shrinkage rate is low, the high temperature and high refractoriness under load, corrosion exhaust smoke temperature dropped to less than 150 degrees, yields by 15-20, billet heating time shortened by 50, oxidation burning loss reduce 30-50 of the environmental protection and energy saving effect.

Regenerative ball features

1, the specific surface area of 240 m2 / m3.

2, many balls will be split into small airflow flows, airflow was outdated in the regenerator, the formation of strong turbulence, effective broke through the accumulation of heat on the surface of the body surface boundary layer, and because the ball diameter is small, small transmission radius, small heat resistance, high density, good thermal conductivity, which can realize regenerative burner frequent and rapid directional control requirements.

3, regenerator can use 20 30 times/h of the reversing, high temperature flue gas flowing through the regenerator in the bed, can be to flue gas emissions have fallen to about 130 .

4, high temperature gas and air flows through the regenerator in the same path can be preheated to only about 100 lower than the flue gas temperature, temperature efficiency is as high as above 90.

5, because of the heat storage volume is very small, combined with the ball the flow capacity of the bed is strong, even after heavy resistance increase does not affect the heat change index.

6, regenerative ball has the characteristics of strong oxidation resistance and slag resistance.

7, ceramic ball replacement, cleaning is very convenient, and can be reused.

Regenerative ball USES

Regenerative ball is suitable for the gas and the gas fuel industrial furnace of regenerative combustion system is chosen, especially for regenerative heating furnace of steel industry, the regenerative ladle baking equipment, air separation equipment of air separation industry regenerator regenerative furnace, non-ferrous metal industry, also used in large forging plant regenerative trolley furnace, regenerative electric boilers, the regenerative incinerator industries do regenerative heat carrier.

Regenerative ball of gas (blast furnace, converter) and the air double preheating (oil, high calorific value gas combustion air is taken, such as single heat storage mode), can make the regenerative heating furnace smoke less 20-50, exhaust smoke temperature dropped to less than 150 degrees, yields by 15-20, billet heating time shortened by 50, the oxidation burning loss reduce 30-50 of the environmental protection and energy saving effect.

contact

Shizuishan Jin Lin corundum refractories co., LTD

Sales manager: li ching

Contact phone number:

OO email: 2105787223 @qq.com

Website: *

Address: takashi shizuishan pingluo county of ningxia hui autonomous region gang coal market
