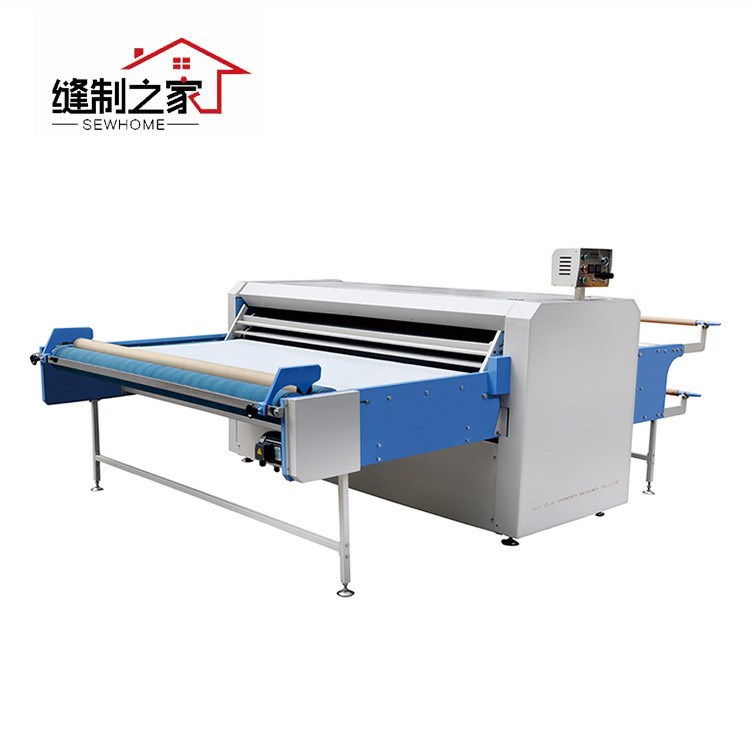

品名：粘合機 GS-1800

Products name: Fusing machine GS-1800

性能特點：

Performance features:

溫度均勻，加溫區各部溫差不大于8℃；

Temperature is uniformity, heating zone ministries temperature not more than 8 ℃;

膠滾壓力穩定，在膠帶全寬度范圍內壓力均勻；

Rubber roller pressure is stable, the whole width of the tape in a uniform pressure；

機械傳動平穩，噪聲??；

Mechanical transmission smooth, low noise;

具有停電手搖機構，保護膠帶停電時不致燒損；

It has the power hand-cranked mechanism, the protective tape without burning power outage;

溫度、壓力、速度可根據需要在規定范圍內任意調整；

The temperature, pressure, speed can be adjusted as required within the specified range;

操作方便，機械電器維修簡單。

Easy to operate, simple mechanical;

本機采用整卷布料連續式粘合功能，節省了裁剪時間，并避免襯托布放反現象。

The machine use the entire volume of a continuous fabric adhesive function ,save the crop time ,and effectively avoid the phenomenon of anti-liner fabric.

采用氣動加壓，較大化可至10MPa/㎡

Using steam-driven pressure,the max up to 10MPa/㎡.

用途：

Usage:

GS-1800 型熱熔粘合機是服裝生產中粘合襯與面料粘合的理想設備。同時，還能用于各類面料、里料縮水過程中的烘干燙平，可一機多用，故該機是現代服裝生產廠必不可少的設備。

The GS-1800 hot melt adhesive machine is the ideal equipment garment interlining and fabric manufacture adhesive. At the same time, but also for all types of fabric, lining shrink during drying ironing, can a machine, so the machine is essential modern garment manufacturing plant professional equipment.

技術參數：

Specification parameter:

1.電源:AC220V50HZ-60

Voltage:AC220V50HZ-60

2.驅動功率：0.2KW

Drive power:0.2KW

3.加熱功率：12KW

Heating power:12KW

4.粘合壓力:0.4MPa

Adhesive pressure:0.4MPa

5.熔合溫度：0-200℃

Fusing temperature:0-200℃

6.膠帶速度：1.04-10.4m/min

Tape speed:1.04-10.4m/min

7.加壓方式：輥式

Pressure method:roller

8.外形尺寸：3370*2436*1480

Dimension(mm):3370*2436*1480

9.重量：720kg

Wegith:720kg
