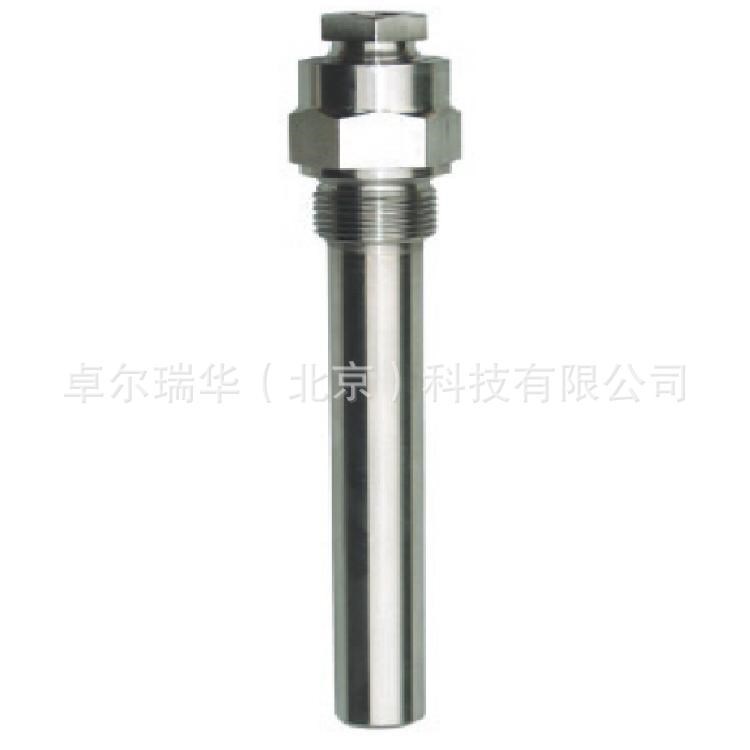

德國AB 8.8141 Model SK2
卡套連接外螺紋整體鉆孔雙金屬溫度計保護套管
Thermowell with Clamping Ring Connection
Solid drilled for screwing-in for plain stems
Application
Thermowells are being applied to protect thermometer stems against process-related chemical and / or mechanical loads.
Furthermore a thermowell, which remains at the measuring point, enables the unproblematic dismounting of the thermometer for maintenance or repair.
Standard Versions
For plain thermometer stems, our models A1 or B1
Construction Type
Solid drilled, that means completely manufactured of one piece, for high loads by the process (flows, pressures, temperatures and vibrations).
Process Connection E
Male thread G ½ B or G ¾ B
½" NPT or ¾" NPT
Details see reverse side.
Connection to Thermometer Stem
Clamping ring fitting 1.4571 (316 stainless steel)
Internal Diameter d1
Ø 7 mm suitable for stem-Ø dF 6 mm
Ø 9 mm suitable for stem-Ø dF 8 mm
Ø 11 mm suitable for stem-Ø dF 10 mm
Ø 13 mm suitable for stem-Ø dF 12 mm
Ø 14 mm suitable for stem-Ø dF 13 mm
Available combinations of connection to thermometer E and internal diameter d1, see reverse side.
Total Length L (Standard)
110, 170, 260 mm
Details and installation length U1 see reverse side.
Material
1.4571 (316 stainless steel)
Process Temperature / Process Pressure
Maximum allowed process temperature: 600 °C
Maximum allowed process pressure: 100 bar
Concrete process conditions (medium, flow rate, pressure, temperature)and the thermowell version (dimensions, material) could cause a reduction of the above mentioned maximum allowed values, see load diagram DIN 43 772.
We can make a thermowell calculation for your concrete field of application (see special version and options) upon request.
Special Versions and Options among others
? Process connections M 20 x 1.5 (instead G ½ B) or
M 27 x 2 (instead G ¾ B)
others upon request
? Other thermowell-Ø upon request
? Other thermowell- / installation lengths L / U1 upon request
? Other materials upon request
? Thermowell free of grease and oil
? Coating adjusted to medium and medium temperature upon request
? Test report 2.1
? Inspection certificate 2.2
? Test certificate 3.1 for the material
(copy of the material quality certificate of the basic material with
re-stamping certificate)
? Test certificate 3.1 for the pressure test (max. installation length
U1= 300 mm, pressure test with extrinsic water, max. 250 bar, 3 minutes)
? Thermowell calculatuion for the concrete case of application with certificate
Dimensions, Lengths, corresponding Thermometer Stems
